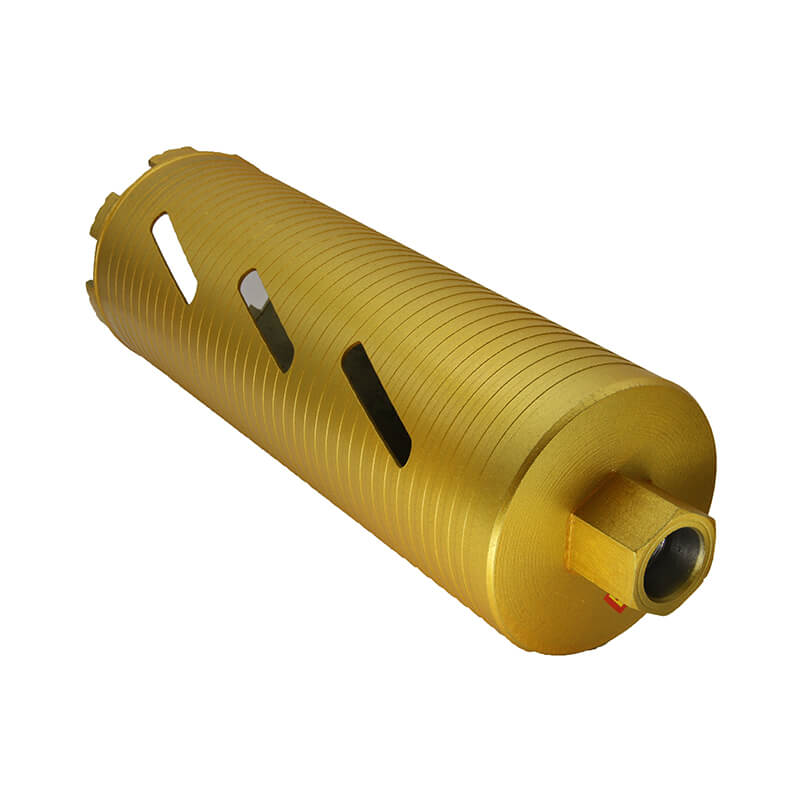

CONCRETE HELIX DRY CORE DRILL BIT
CONCRETE HELIX DRY CORE DRILL BIT
MATERIAL: STONE, TILE, BLOCK, CONCRETE
USAGE: DRY
- This diamond core drill comprises premium aluminum alloy components, and high-quality diamond grits ensure a longer coring life.
- spiral body gives fast coolling and chip removal holes.
- Arbor size: 1 -1/4″-7, 5/8”–11 Threaded, 1/2″ Shank, M22, M41, etc
| PRODUCTS NAME | ITEM CODE | DIAMETER (INCH/MM) | USABLE LENGTH (INCH/MM) | SEGMENT HEIGHT (MM) |
|---|---|---|---|---|
| CONCRETE HELIX DRY CORE DRILL BIT | CD032G | 1-1/4″ / 32 | 14″ / 350 | 10 |
| CD035G | 1-3/8″ / 35 | 14″ / 350 | 10 | |
| CD038G | 1-1/2″ / 38 | 14″ / 350 | 10 | |
| CD042G | 1-3/4″ / 42 | 14″ / 350 | 10 | |
| CD050G | 2″ / 50 | 14″ / 350 | 10 | |
| CD055G | 2-1/5“ / 55 | 14″ / 350 | 10 | |
| CD065G | 2-1/2″ / 65 | 14″ / 350 | 10 | |
| CD068G | 2-3/4″ – 68 | 14″ / 350 | 10 | |
| CD075G | 3″ / 75 | 14″ / 350 | 10 | |
| CD080G | 3-1/4″ / 80 | 14″ / 350 | 10 | |
| CD088G | 3-1/2″ / 88 | 14″ / 350 | 10 | |
| CD102G | 4″ / 102 | 14″ / 350 | 10 | |
| CD106G | 4-1/4″ / 106 | 14″ / 350 | 10 | |
| CD112G | 4-1/2″ / 112 | 14″ / 350 | 10 | |
| CD125G | 5″ / 125 | 14″ / 350 | 10 |
