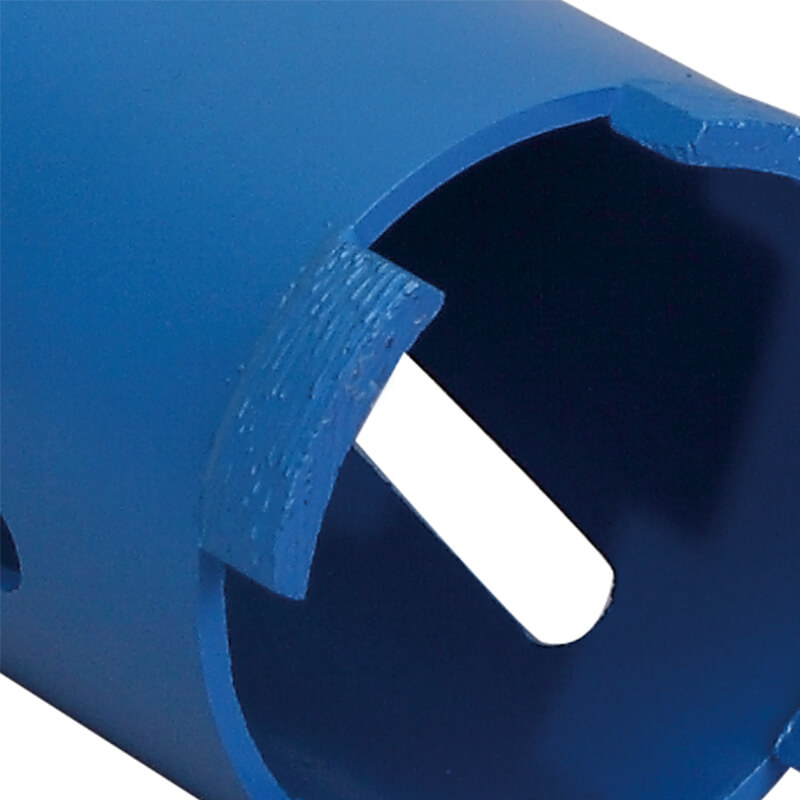

LASER WELDED CONCRETE CORE DRILL BIT
LASER WELDED CONCRETE CORE DRILL BIT
MATERIAL: REINFORCED CONCRETE, STUCCO, BRICK, AND MOST HARD SURFACES
USAGE: DRY/WET
- Designed for drilling higher PSI concrete, concrete with medium level of rebar reinforcement, and other hard masonry. #30/40 diamond grit.
- The segments are laser welded by newly german machines making highest quality on cutting speed and working life.
- Arbor size: 1 -1/4″-7, 5/8”–11 Threaded
| PRODUCTS NAME | ITEM CODE | DIAMETER (INCH/MM) | USABLE LENGTH (INCH/MM) | SEGMENT HEIGHT (MM) |
|---|---|---|---|---|
| LASER WELDED CONCRETE CORE DRILL BIT | CD050K | 2″ / 50 | 18’/450 | 10 |
| CD055K | 2-1/5“ / 55 | 18’/450 | 10 | |
| CD065K | 2-1/2″ / 65 | 18’/450 | 10 | |
| CD068K | 2-3/4″ / 68 | 18’/450 | 10 | |
| CD075K | 3″ / 75 | 18’/450 | 10 | |
| CD080K | 3-1/4″ / 80 | 18’/450 | 10 | |
| CD088K | 3-1/2″ / 88 | 18’/450 | 10 | |
| CD102K | 4″ / 102 | 18’/450 | 10 | |
| CD106K | 4-1/4″ / 106 | 18’/450 | 10 | |
| CD112K | 4-1/2″ / 112 | 18’/450 | 10 | |
| CD125K | 5″ / 125 | 18’/450 | 10 | |
| CD138K | 5-1/2″ / 138 | 18’/450 | 10 | |
| CD150K | 6″/150 | 18’/450 | 10 | |
| CD156K | 6″-1/4″ / 156 | 18’/450 | 10 | |
| CD162K | 6″-1/2″ / 162 | 18’/450 | 10 | |
| CD180K | 7″/180 | 18’/450 | 10 | |
| CD200K | 8″/200 | 18’/450 | 10 | |
| CD230K | 9″/230 | 18’/450 | 10 | |
| CD250K | 10″/250 | 18’/450 | 10 | |
| CD300K | 12″/300 | 18’/450 | 10 | |
| CD350K | 14″/350 | 18’/450 | 10 |
