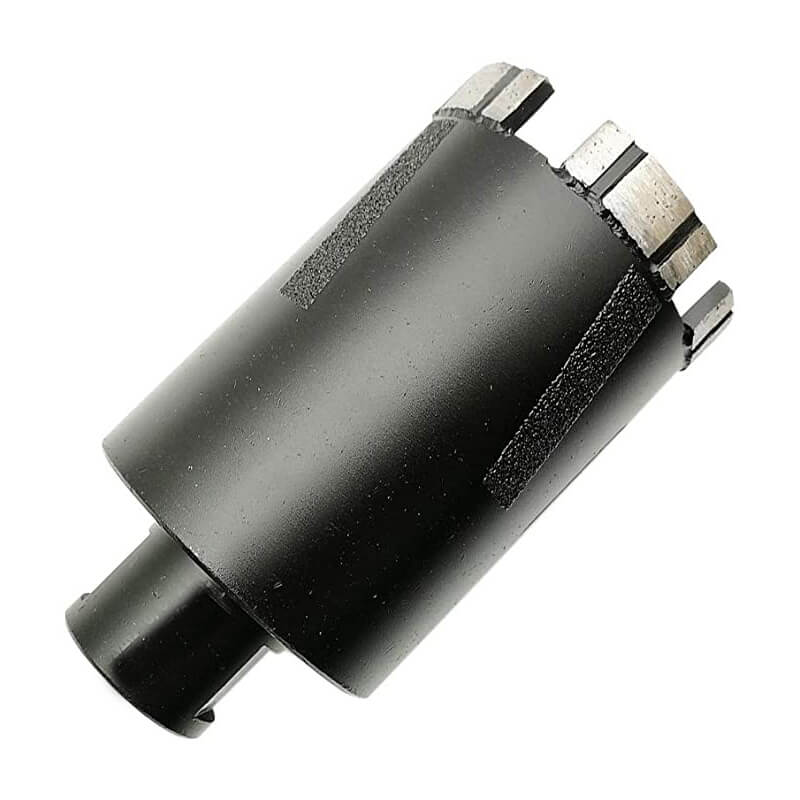

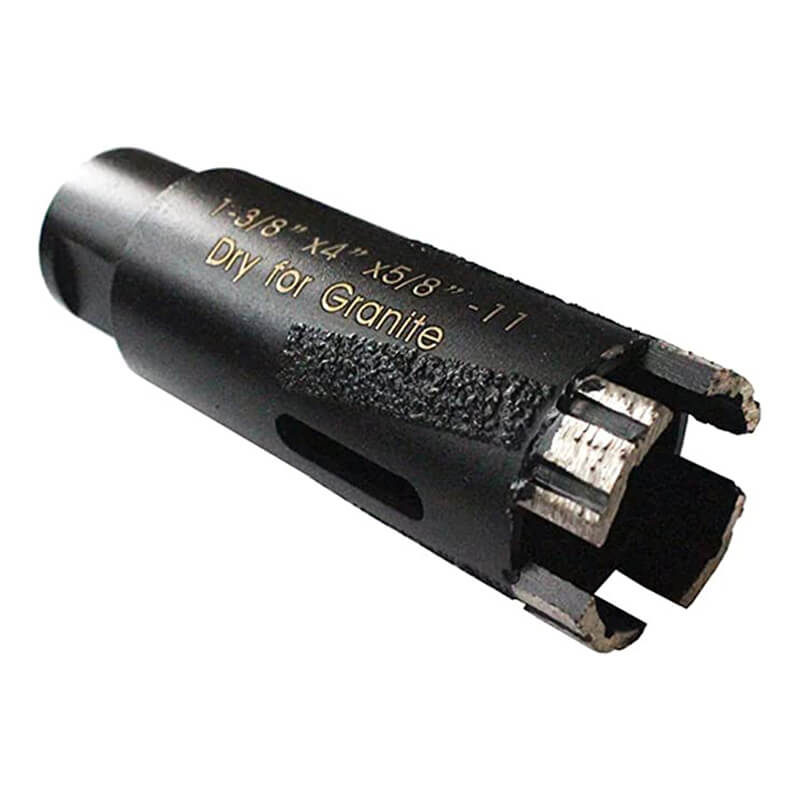

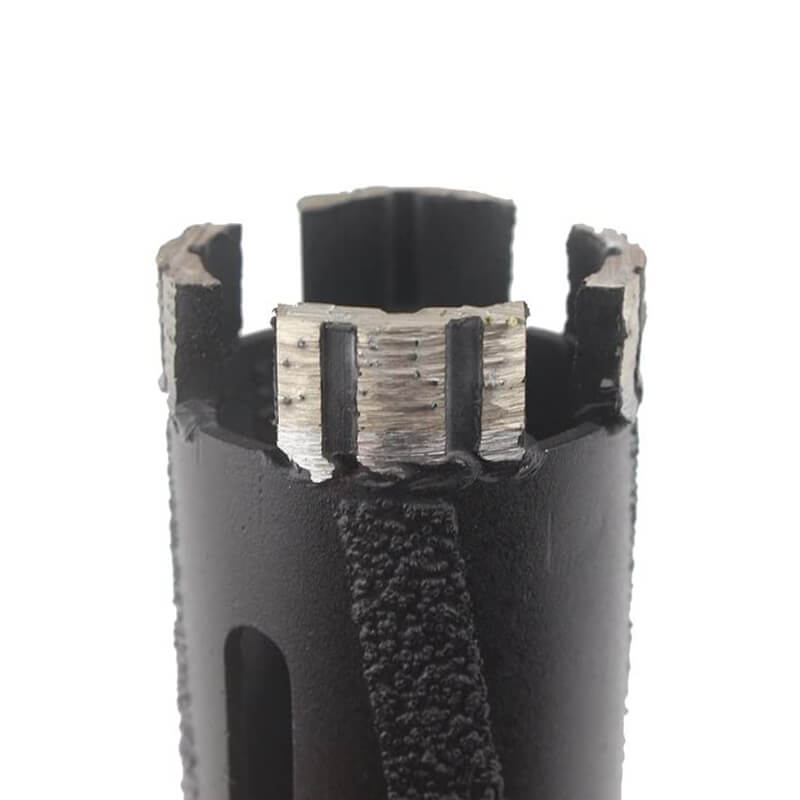

LASER WELDED DRY CORE DRILL BIT
LASER WELDED DRY CORE DRILL BIT
MATERIAL: GRANITE, MARBLE, CONCRETE
USAGE: DRY
- Using laser welded technology,improve the performance of segments,avoid segments off during drilling process.
- The vacuum brazing protective layer on the surface of the core steel offers clean cut & steel core protection.
- Creates a fast and stable drilling, you could drill smoothly with no broken edges.
- Arbor size: (ROUND HANDLE – Φ10/Φ12) (INTERNAL THREAD – M14,5/8″-11) (1/2″GAS EXTERNAL – 1/2″G MALE)
| PRODUCTS NAME | ITEM CODE | DIAMETER (INCH/MM) | USABLE LENGTH (INCH/MM) | SEGMENT HEIGHT (MM) |
|---|---|---|---|---|
| LASER WELDED DRY CORE DRILL BIT | CD018B | 0-3/4″ / 18 | 3″/80 | 10 |
| CD020B | 0-4/5″ / 20 | 3″/80 | 10 | |
| CD025B | 1″ / 25 | 3″/80 | 10 | |
| CD032B | 1-1/4″ / 32 | 3″/80 | 10 | |
| CD035B | 1-3/8″ / 35 | 3″/80 | 10 | |
| CD038B | 1-1/2″ / 38 | 3″/80 | 10 | |
| CD045B | 1-3/4″ / 45 | 3″/80 | 10 | |
| CD050B | 2″ / 50 | 3″/80 | 10 | |
| CD065B | 2-1/2″ / 65 | 3″/80 | 10 | |
| CD075B | 3″ / 75 | 3″/80 | 10 | |
| CD102B | 4″ / 102 | 3″/80 | 10 |
