VACUUM BRAZED HAND PROFILE WHEEL
VACUUM BRAZED HAND PROFILE WHEEL
MATERIAL: GRANITE, QUARTZ, ENGINEERED STONE, CONCRETE, PORCELAIN
USAGE: DRY/WET
- Vacuum Brazed Diamond Grit: 35/45, coarse.

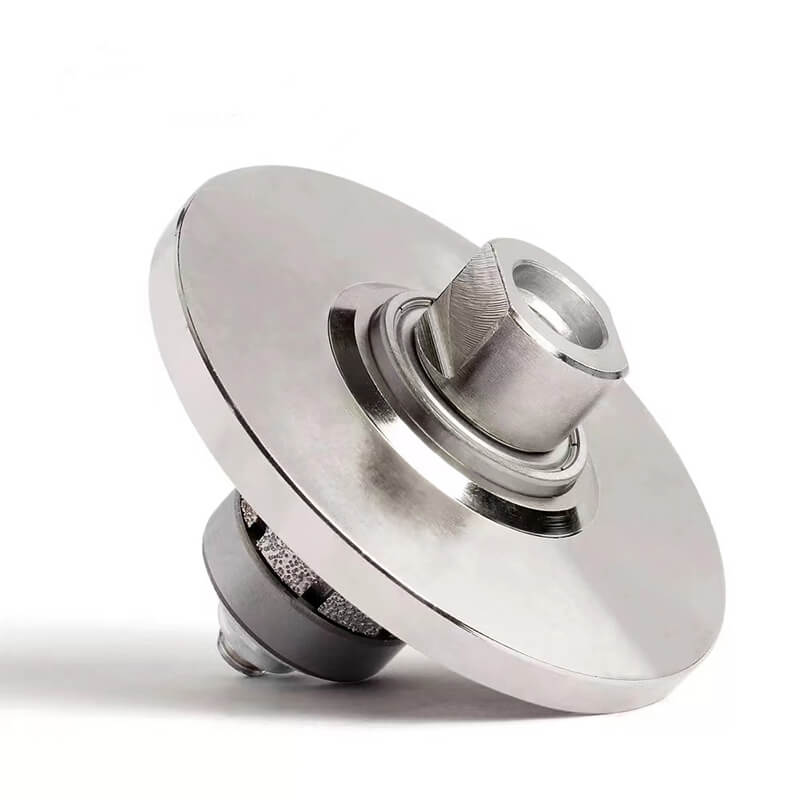

- A nylon guide on the top of the bits slide along the working surfaces steadily; the rotary touch bearing controls the depth smoothly.
| PRODUCTS NAME | ITEM CODE | DIAMETER (INCH/MM) | SEGMENT LENGTH (MM) | SEGMENT HEIGHT (MM) | ARBOR SIZE |
|---|---|---|---|---|---|

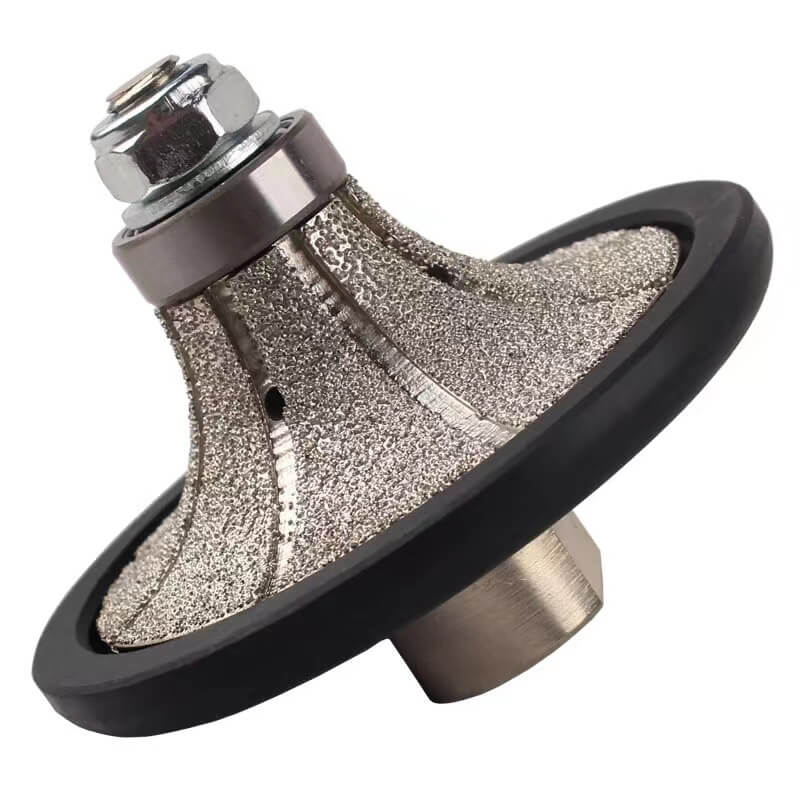

| VACUUM BRAZED HAND PROFILE WHEEL | CLW020LB | 3″ / 85 | Shape B – Radius Demi-Bullnose | 3/4″ / 20 | 5/8″-11 M14 |
| CLW025LB | 3″ / 85 | Shape B – Radius Demi-Bullnose | 1″ / 25 | 5/8″-11 M14 |
|
| CLW030LB | 3″ / 85 | Shape B – Radius Demi-Bullnose | 1-1/5″ / 30 | 5/8″-11 M14 |
|

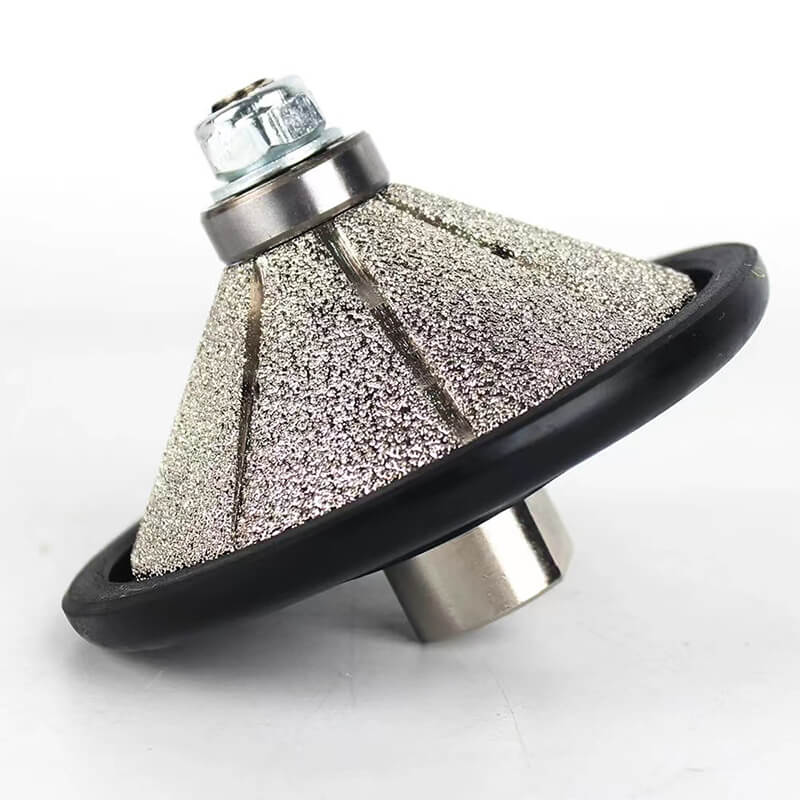

| CLW020LE | 3″ / 85 | Shape E – 45 Degree Bevel | 3/4″ / 20 | 5/8″-11 M14 |
|
| CLW030LE | 3″ / 85 | Shape E – 45 Degree Bevel | 1-1/5″ / 30 | 5/8″-11 M14 |
|
| CLW020LF | 3″ / 85 | Shape F – Ogee | 3/4″ / 20 | 5/8″-11 M14 |
|
| CLW030LF | 3″ / 85 | Shape F – Ogee | 1-1/5″ / 30 | 5/8″-11 M14 |
|
| CLW020LV | 3″ / 85 | Shape V – Full Bullnose | 3/4″ / 20 | 5/8″-11 M14 |
|
| CLW030LV | 3″ / 85 | Shape V – Full Bullnose | 1-1/5″ / 30 | 5/8″-11 M14 |
|
| CLW040LV | 3″ / 85 | Shape V – Full Bullnose | 1-2/5″ / 40 | 5/8″-11 M14 |
|

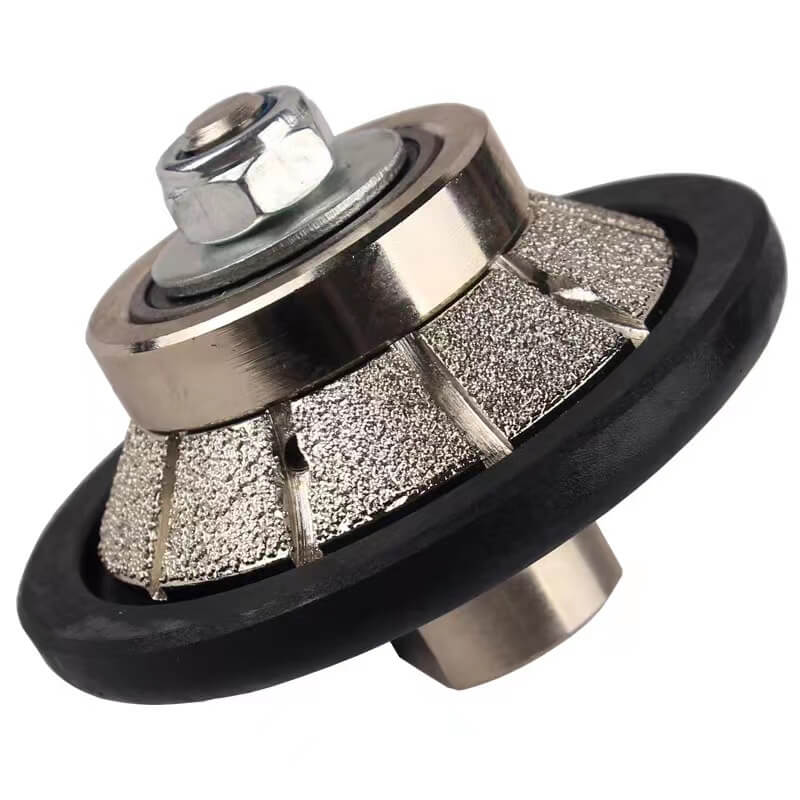

| CLW030LZ | 3″ / 85 | Shape Z – STRAIGHT | 1-1/5″ / 30 | 5/8″-11 M14 |
|
| CLW040LZ | 3″ / 85 | Shape Z – STRAIGHT | 1-2/5″ / 40 | 5/8″-11 M14 |
